Hoy,
Gezien de interesse voor ontstekers,info en doorsnedes,wil ik graag beginnen met een topic daarover.
Mijn bedoeling is ;
1 te verhinderen dat nieuwsgierige mensen (ben ik ook) zelf gaan fuzen demonteren om eens te zien hoe die dingen nou toch functioneren …..
2 niet telkens dezelfde info opnieuw te moeten posten,ik maak er een sticky van (als de “grote bazen hiermee akkoord gaan)
3 ik word hier wereldberoemd mee……
4 het is veel werk ,maar mijn vrouw beweert toch dat ik meer communiceer op het forum dan met haar……
eens beginnen met Duitse ontstekers Artillerie WW1,en naargelang de “respons” en mijn beschikbare data zien we wel ……
hou dus wel in gedachte dat “fuzen” geen onschuldige brokjes metaal zijn…het zijn soms “vingeretertjes”…
Numero uno dan….volgens dit schema….


De Kanone Zünder 14







Zo dat was nr 1,eventuele fouten of voorstellen ?...laat maar horen,en als iemand een simpele manier weet om PDF files en zo om te zetten naar JPG,laat maar horen !!!
Grtz MMM
_________________
People always have been the foolish victims of deception and self-deception in politics, and they always will be, until they have learned to seek out the interests of some class or other behind all moral, religious, political and social phrases, declarations and promises.

[Cnock]

MMM,

mooie initiatief!


Cnock

[Binkske007]

Welk reglement heb je er voor geraadpleegd?
_________________
"They shall grow not old, as we that are left grow old"

[maxmadmartin]

[maxmadmartin]

[Binkske007]

mmmmmm, dank u MMM.
Ik volg met grote spanning.
Mooie foto's overigens.
_________________
"They shall grow not old, as we that are left grow old"

[Cnock]

MMM,

ik heb dat boek ook, weliswaar in fotocopie, maar zéér interessant

mvg,

Cnock

[maxmadmartin]

Nr 2 dus,
De leuchtgeschosszünder S 33 & 22,het verschil is de brandtijd van de ontsteker ,22 en 33 seconden.De 33 is een marineversie, de 22 landmacht.
Dit keer een Engelstalige versie v/d doorsnede…
Wat verkiezen jullie,Engels of Frans..?







Grtz,MMM
_________________
People always have been the foolish victims of deception and self-deception in politics, and they always will be, until they have learned to seek out the interests of some class or other behind all moral, religious, political and social phrases, declarations and promises.

[maxmadmartin]

[maxmadmartin]

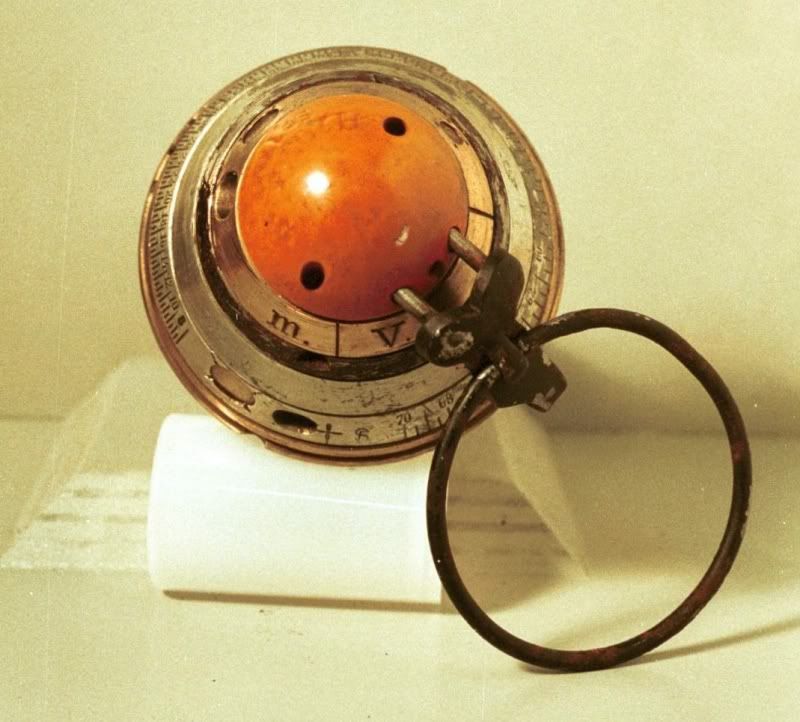

De HZ 05;



_________________
People always have been the foolish victims of deception and self-deception in politics, and they always will be, until they have learned to seek out the interests of some class or other behind all moral, religious, political and social phrases, declarations and promises.

[maxmadmartin]

De HZ 14


grtz,MMM
_________________
People always have been the foolish victims of deception and self-deception in politics, and they always will be, until they have learned to seek out the interests of some class or other behind all moral, religious, political and social phrases, declarations and promises.

[maxmadmartin]

De Grz 14;




MMM
_________________
People always have been the foolish victims of deception and self-deception in politics, and they always will be, until they have learned to seek out the interests of some class or other behind all moral, religious, political and social phrases, declarations and promises.

[maxmadmartin]

De Grz 04,
In de volksmond beter gekend als de “paardefluit”



En nu een zeldzaam stuk,de Grz 04 “valstrik” met chemische vertraging…




Leuk ding hé…..
Grtz,MMM
_________________
People always have been the foolish victims of deception and self-deception in politics, and they always will be, until they have learned to seek out the interests of some class or other behind all moral, religious, political and social phrases, declarations and promises.

[Cnock]

MMM,

thanks,




Uploaded with ImageShack.us

voor de verandering, bovenaanzicht KZ 14, GR 14, HZ 14 en Dopp Z.91

mvg

Cnock

[maxmadmartin]

dank je Cnock
je geeft me weer zin om met volle moed door te gaan
je steun in de vorm van je mooie fotos appricieer ik geweldig
je mag gerust je eigen "input" voortzetten ,een project als dit kan beter van meer dan één persoon komen !(voel me een beetje eenzaam op de DOVO Topic )
Grtz van een tevreden MMM
_________________
People always have been the foolish victims of deception and self-deception in politics, and they always will be, until they have learned to seek out the interests of some class or other behind all moral, religious, political and social phrases, declarations and promises.

[Percy Toplis]

De eerlijkheid gebiedt me te zeggen dat ik er bijster weinig van snap, maar interessant is het wél (en het glimt ook zo mooi...)! Ga door, MMM!
_________________

“I hope you live a life you are proud of. If you find that you are not, l hope you have the strength to start all over again.
- F. Scott Fitzgerald

[Tandorini]

[Percy Toplis]

[maxmadmartin]

[Percy Toplis]

[maxmadmartin]

Zeg Percy...
je bent geen Hercules misschien ,maar ik beschouw je ook niet als "mietje"
dus vervolgens wat tekeningen om in te kleuren...t'ja kindjes,1 september....
Nog wat info over de 04 & 14,
Voor Tandi ,kijk naar de kolommen voor de soort granaten en hun geschut waarop deze fuzen werden gebruikt….







Pffffffffffffffff,MMM
PS,ga voortaan de Franse tekeningen gebruiken,deze bevatten allemaal een doorsnede
_________________
People always have been the foolish victims of deception and self-deception in politics, and they always will be, until they have learned to seek out the interests of some class or other behind all moral, religious, political and social phrases, declarations and promises.

[Cnock]

links Granatzuender 04
Uiterst rechts Granatzuender 96/04 (gebruikt met 15cm en 21cm kanonnen)

Cnock

[maxmadmartin]

Thanks Cnock !
MMM
_________________
People always have been the foolish victims of deception and self-deception in politics, and they always will be, until they have learned to seek out the interests of some class or other behind all moral, religious, political and social phrases, declarations and promises.

[Cnock]

MMM,

het zware werk blijft voor jou..

mvg

Cnock

[maxmadmartin]

"Message loud & clear"
MMM
_________________
People always have been the foolish victims of deception and self-deception in politics, and they always will be, until they have learned to seek out the interests of some class or other behind all moral, religious, political and social phrases, declarations and promises.

[Cnock]

MMM,


niet dat ik je dat toewens


Cnock

[maxmadmartin]

Geduld wordt beloond,
Soms toch ,Dopp Z 15






En de 96




tot later MMM
Ps; de aanduiding NA betekent "niet alcholhoudend"
_________________
People always have been the foolish victims of deception and self-deception in politics, and they always will be, until they have learned to seek out the interests of some class or other behind all moral, religious, political and social phrases, declarations and promises.

[maxmadmartin]

De Hz 16,


De Kz 16 für 10 cm,




De LKZ 11



De EHZ 16 C,

Grtz,MMM
_________________
People always have been the foolish victims of deception and self-deception in politics, and they always will be, until they have learned to seek out the interests of some class or other behind all moral, religious, political and social phrases, declarations and promises.

[Cnock]

Uploaded with ImageShack.us

Eisene Kanonenzuender 16 mit Verzogerung en Granatzuender 04
Derry House Farm (1999) herinnering aan Gaston Dochy

Cnock

[Binkske007]

Gewoonweg een (op zijn zachtst uitgedrukt) schitterende topic.
Waar haal je die mooie afbeeldingen toch vandaan?
Bestaat hier een degelijk boek over???
Als ik té curieus ben, zeg het maar hoor.
_________________
"They shall grow not old, as we that are left grow old"

[maxmadmartin]

[maxmadmartin]

De technische fiches..




En binnenkort de resterende…
MMM
_________________
People always have been the foolish victims of deception and self-deception in politics, and they always will be, until they have learned to seek out the interests of some class or other behind all moral, religious, political and social phrases, declarations and promises.

[Fritz Kempf]

En wie deze kan bezitten, mag zeer gelukkig zijn. Zie naar mij.




_________________
"Kennscht mi noch?" ~~~ Who is the real "Fritz Kempf"?

Ypres Salient on Pictures
Discover the Salient - Meet the men

FHSW Wikia

[maxmadmartin]

Zeldzaam in deze staat..
nietwaar Snaapie
Grtz,MMM
_________________
People always have been the foolish victims of deception and self-deception in politics, and they always will be, until they have learned to seek out the interests of some class or other behind all moral, religious, political and social phrases, declarations and promises.

[Fritz Kempf]

[maxmadmartin]

Reeks C,







Grtz,MMM
_________________
People always have been the foolish victims of deception and self-deception in politics, and they always will be, until they have learned to seek out the interests of some class or other behind all moral, religious, political and social phrases, declarations and promises.

[Victor Frederik]

Ik snap er helemaal niets van, maar ben weer verbijsterd dat er zoveel specialistische kennis hier op het forum voorhanden is.
_________________
Victor Frederik
theatermaker
www.deuitvinder.com

[maxmadmartin]

[Cnock]

MMM,
mooi gedaan!





links beschadigde Granatzuender 04
Rechts Doppelzünder 92 Neue Form


Cnock

[maxmadmartin]

Technische fiches,




Grtz,MMM
_________________
People always have been the foolish victims of deception and self-deception in politics, and they always will be, until they have learned to seek out the interests of some class or other behind all moral, religious, political and social phrases, declarations and promises.

[maxmadmartin]

Technische fiches,




Grtz,MMM
_________________
People always have been the foolish victims of deception and self-deception in politics, and they always will be, until they have learned to seek out the interests of some class or other behind all moral, religious, political and social phrases, declarations and promises.

[Cnock]

even iets anders




Granat Zuender C 83 van het Marinekorps,

voor 15 cm Sprenggranate en 15cm Brandgranate
De ontsteker zit nog in de koperen buis van de granaatkop


Cnock

[maxmadmartin]

We gaan verder met de KZ 11




Grtz,MMM
_________________
People always have been the foolish victims of deception and self-deception in politics, and they always will be, until they have learned to seek out the interests of some class or other behind all moral, religious, political and social phrases, declarations and promises.

[maxmadmartin]

De rest van C,












Technische fiches volgen..
Grtz,MMM
_________________
People always have been the foolish victims of deception and self-deception in politics, and they always will be, until they have learned to seek out the interests of some class or other behind all moral, religious, political and social phrases, declarations and promises.

[Cnock]

MMM,

opnieuw interessante foto's!

Cheers,

Cnock

[maxmadmartin]

[Cnock]

Kurze Boden Zuender 10, met lichaam in messing en koker in ijzer
gebruikt bij kalibers van 10,5 tot 42 cm

HZ 16
lichaam in een zinklegering, kop en koker in ijzer
gebruikt voor kanonnen 10,5 cm

Cnock

[maxmadmartin]

Technische Fiches,







Tot later en bedankt Knock ,MMM
_________________
People always have been the foolish victims of deception and self-deception in politics, and they always will be, until they have learned to seek out the interests of some class or other behind all moral, religious, political and social phrases, declarations and promises.

[Cnock]

MMM,

graag gedaan
mvg

Eddy

[maxmadmartin]

Nou moe…
Je zet doorsneden van ontstekers op het forum ,om mensen te weerhouden van die dingen zelf open te maken en dan brengt één van onze ploegen dit binnen..


Zoal ene meneer Van Rossem zou zeggen “t’is Godgeklaagd,verdoemme”
Grtz,MMM
